Armstrong® · Heterogeneous Vinyl Sheet
COLORWIN is a heterogeneous vinyl sheet built on three core structures: a calendered high-performance wear layer, a multi-axial fiberglass core and a solid one-piece calendered base. The surface is denser, the dimensions more stable and load-bearing stronger. Free of DOP and heavy metals with ultra-low VOC, it passes the REACH SVHC test, making it ideal for high-traffic, high-load commercial spaces.
Three core structures for durable flooring in high-traffic, high-load commercial spaces
0.4mm high-performance wear layer, denser than coated types, stain and pressure resistant with longer life
High-toughness glass fiber balances stress for better dimensional stability, resisting curling and warping
One-piece calendered backing, no recycled material, denser and stronger against dynamic and static loads
DOP-free, heavy-metal-free, ultra-low VOC, passing REACH SVHC high-risk substance testing
Surface coating + wear layer + print layer + fiberglass core + solid base
Keeping Armstrong's commitment and protecting the health of space users
Data based on official Armstrong technical literature; actual product shall prevail
| Series | Armstrong COLORWIN (Jinglilong) |
| Flooring Type | Solid Heterogeneous Vinyl Sheet |
| Surface Treatment | PUR |
| Pattern | Aquaria |
| Roll Dimensions | 2.0m × 15/20m (W × L) |
| Overall Thickness | 2.0mm |
| Wear Layer Thickness | 0.4mm |
| Flammability | B1 (GB 8624-2012) |
| Slip Resistance | R9 (DIN 51130) |
| Dynamic Coefficient of Friction | DS (EN 13893) |
| VOC | PASS (GB 18586) |
| Residual Indentation | <0.10mm |
| Dimensional Stability | <0.40% |
| Wear Resistance | Group T (EN 649) |
| Color Fastness | ≥6 (ISO 105-B02) |
| Castor Wheel Test | Suitable (EN 425) |
| Chemical Resistance | No stain (EN 423) |
Domestic 21-23 / Commercial 31-34 / Industrial 41-43
| 31 Light commercial | Intermittent or low-frequency commercial use (hotel bedrooms, meeting rooms) |
| 32 Medium commercial | Medium-traffic commercial areas (classrooms, offices, libraries) |
| 33 Heavy commercial | Frequently used commercial areas (corridors, storage, school multi-purpose halls, hospital wards) |
| 34 Extra-heavy commercial | Very frequent intensive use (airport halls, shops, hospital corridors) |
| 41-43 Industrial | Electronics assembly, storage warehouses, production workshops |
COLORWIN offers 16 designs with Aquaria water-wave texture (actual color may vary slightly from samples)

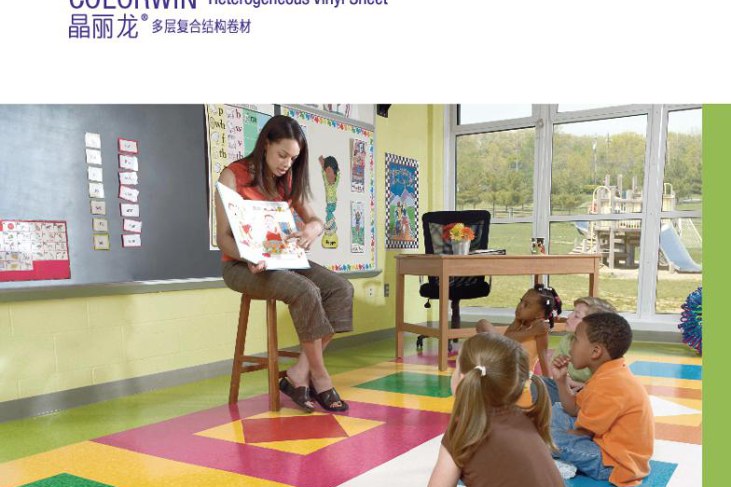

For classrooms, offices, hospitals and airports requiring durability and environmental health
